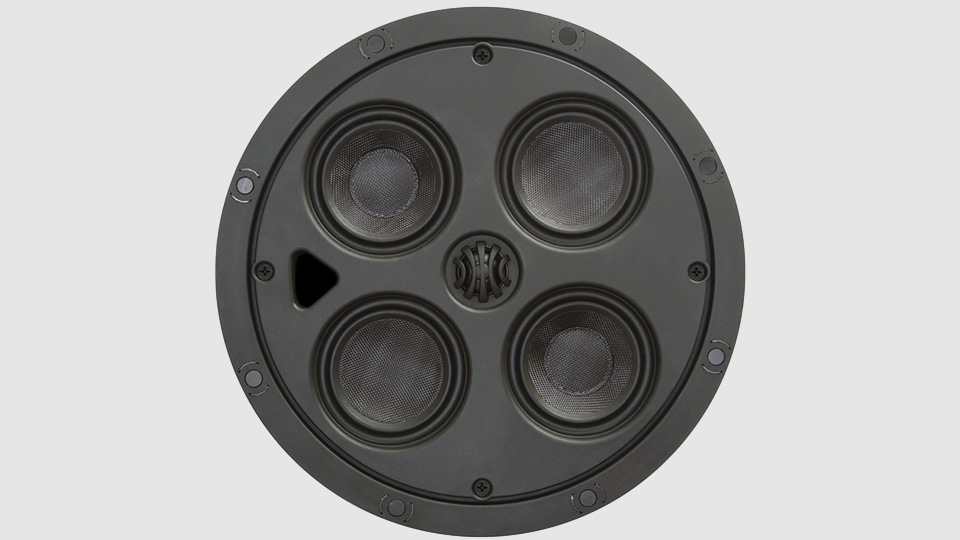

Origin Acoustics

Thinfit

Ceiling Speaker

Designed to fit where other ceiling speakers cannot. Bringing incredible music and sound to spaces with only 36mm deep ceiling cavities, Thinfit speakers are weather proof, making them ideal for marine or wet-room use.

Thinfit

Shallow-mount
Ceiling Speaker

Requiring only 36mm installation depth, Origin Acoustics Thinfit speakers bring great sound to otherwise complex spaces.

Sounds From Above

An in-ceiling speaker like no other, designed for the most demanding installations. Fitting in spaces where most other speakers would fail to fit, Thinfit speakers are also weather resistant.

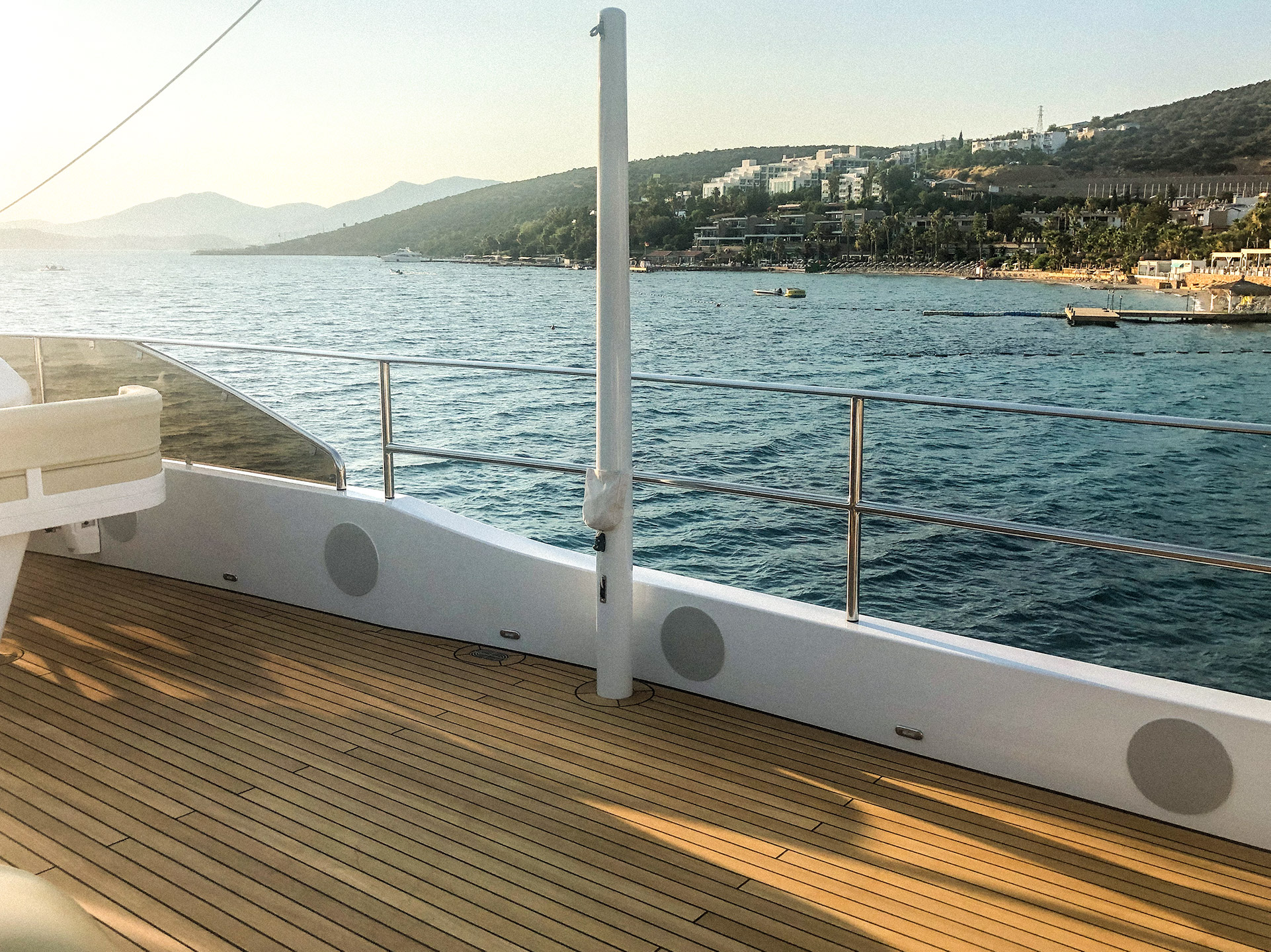

Whether installed in a marine environment, wet-room or simply a ceiling with limited space, Thinfit means you no longer have to compromise on sound.

Materials

Housed in a shallow IPX6 water-resistant enclosure, Thinfit speakers are completed with a low-profile grille which can be painted to match any ceiling.

Sound

With a high performance aluminium tweet and dynamic quad-array woofer configuration, Thinfit speakers perform far beyond their size would imply. With 100W peak performance (30Wrms) and going down to 120Hz, enjoy great sound in even the most difficult environment.

Installation

With four dog-ear mounts, installation into drywall or plasterboard ceilings is a breeze. Requiring a 222mm mounting hole, Thinfit has the appearance of a standard 8″ ceiling speaker once installed (10″ grille).

Mounting Depth

36mm

Low-profile

Power

100W

Peak (30Wrms)

Water Resistance

IPX6

High pressure sprayed water

Listen Together

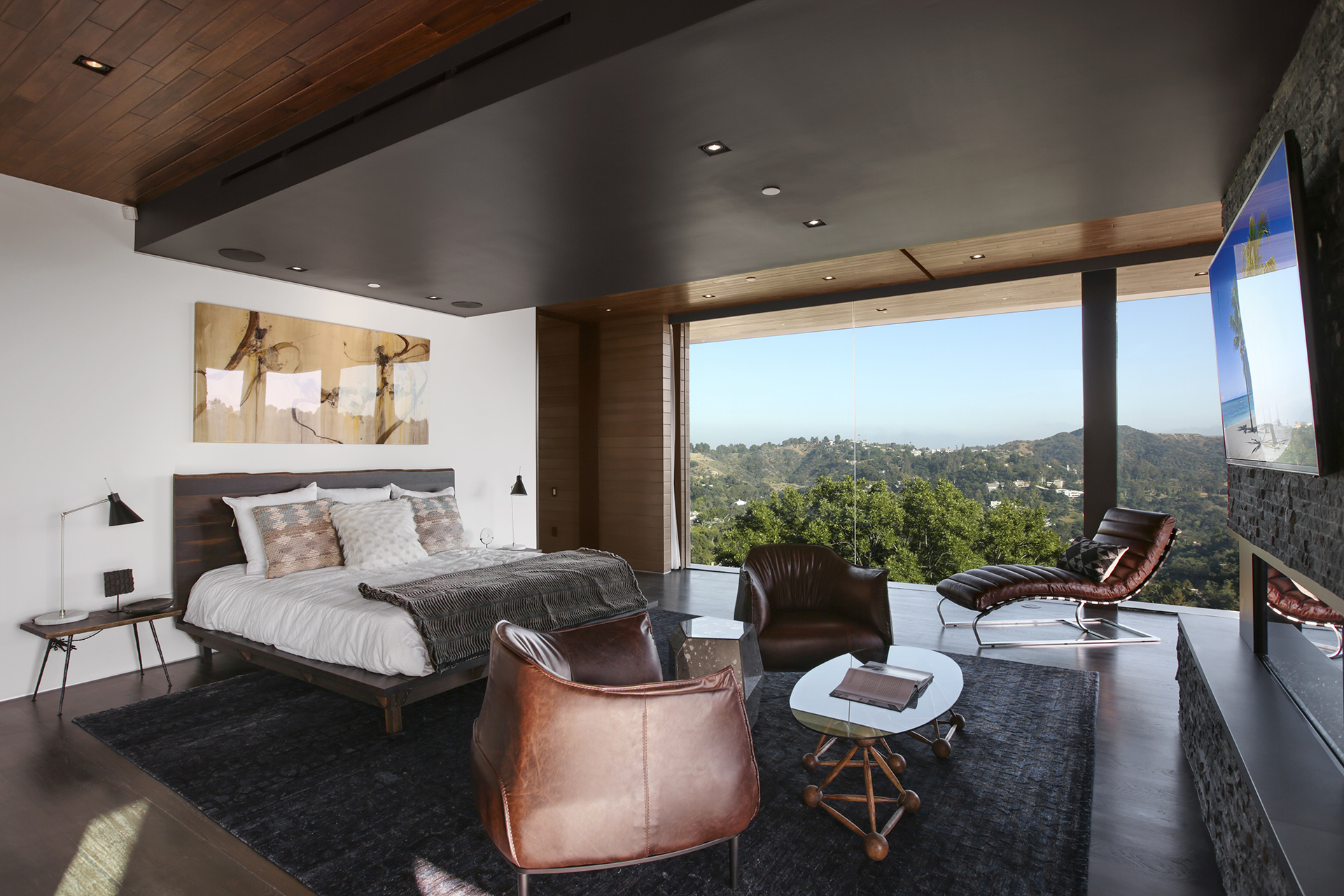

Perfect for music, or as part of a surround sound system, watch incredible movies and TV with your family and friends from the comfort of your sofa. With powerful dynamics and sound aimed at the sweet-spot, you can all share the action.

Paired with an Oasthaus Vita surround amplifier, let the system do all the hard work so you don’t have to. Forget complex menu systems and crowded remote controls, just focus on the movie and enjoy incredible sound.

Harmonious Performance

Designed to work in harmony, Oasthaus products have been picked to work well in the most common package configurations. With all the hard work specifying the right products taken care of, all you have to do is provide the popcorn.

Whether you want to fill your home with music, or enjoy the latest blockbuster movie, Oasthaus has the perfect package for you.

Music

2 x THINFIT CEILING SPEAKERS
1 x OASTHAUS VITA AMPLIFIER

Television

2 x THINFIT CEILING SPEAKERS
1 x Sub
1 x OASTHAUS VITA AMPLIFIER

Surround Sound

5 x THINFIT CEILING SPEAKERS
1 x Sub
1 x OASTHAUS VITA AMPLIFIER

Your Design,
Your Choice

With the ability to fit into the most challenging of ceiling spaces and be painted to perfectly match your room, Thinfit speakers offer great design and sound flexibility with minimal visual impact.

Range:

120Hz – 20KHz

Impedance:

6Ohms

Driver:

Quad 3″ Woofer, 3/4″ Tweeter

Weight:

6Kg

Power:

100W (maximum peak)

Sensitivity:

90dB SPL (@1m 2.83V)

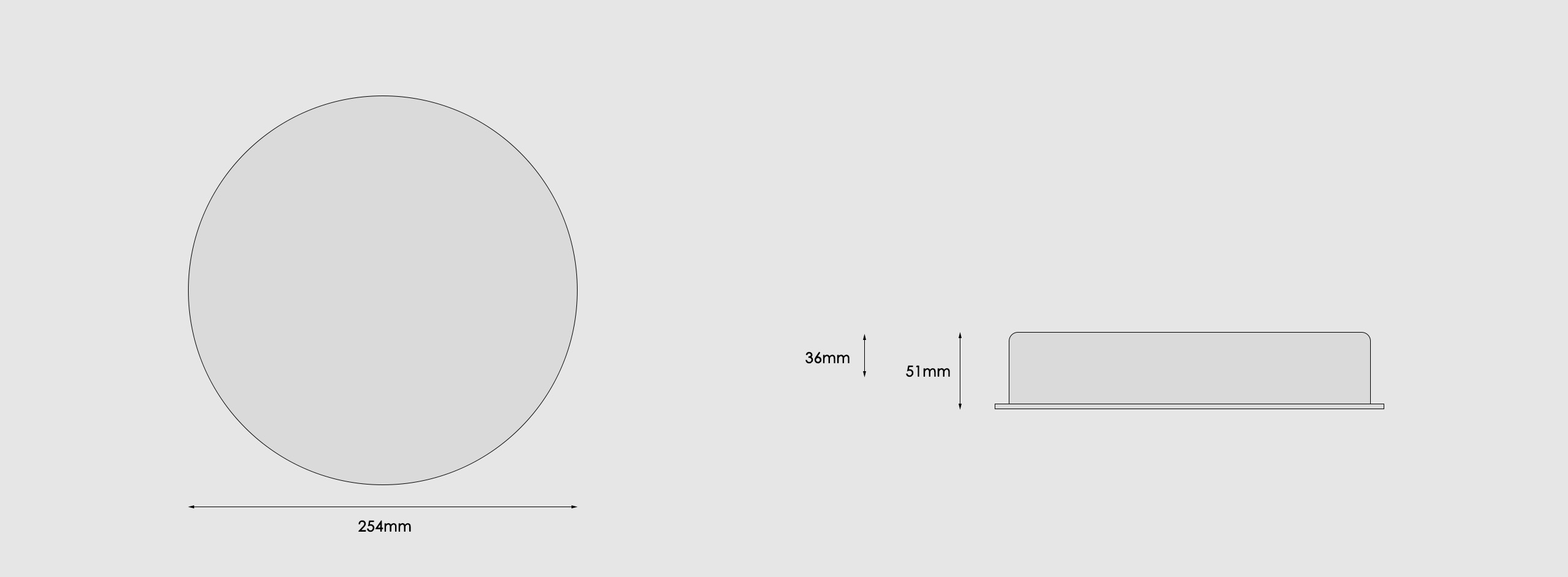

Dimensions:

254mm diameter grille (10″)

Grille Material:

Painted Steel

A Perfect Match

Subwoofer

Subwoofer

Join the Oasthaus

Join the Oathaus today to start enjoying all the benefits of our collections of Designer Technology. Unlock pricing and package deals as well as having access to local support, all with an Oasthaus account. Or simply explore more of the Oasthaus collections for ideas for your next project.
